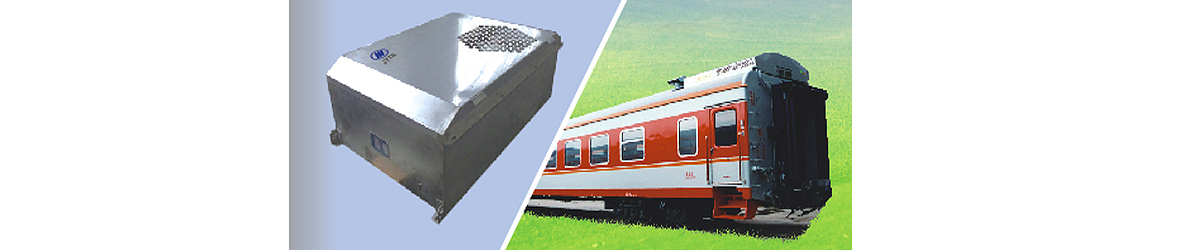

Locomotive HVAC unit
KLP5.0型 | KLP5.0 Model
Rail locomotive HVAC is applicable for vehicle model: DF4, DF7, DF8, SS3, SS4, and SS6, etc. As roof mount unit type model, it is installed on 2 roof ends of driver's cab. The cool air outlet and return air inlet, both at bottom of the HVAC unit, are connected with cab roof via air duct. At ends of the air ducts are outlet and inlet air grilles. The outlet air direction can be controlled by adjusting the wind lever angle. The control cabinet is installed within cab to control the HVAC system.

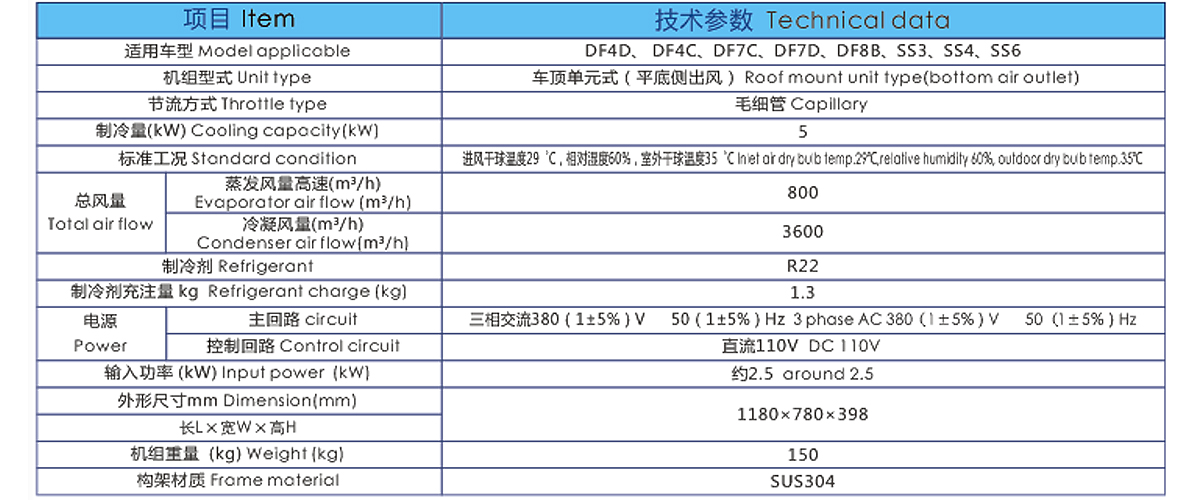

技術(shù)參數(shù)Technical data
